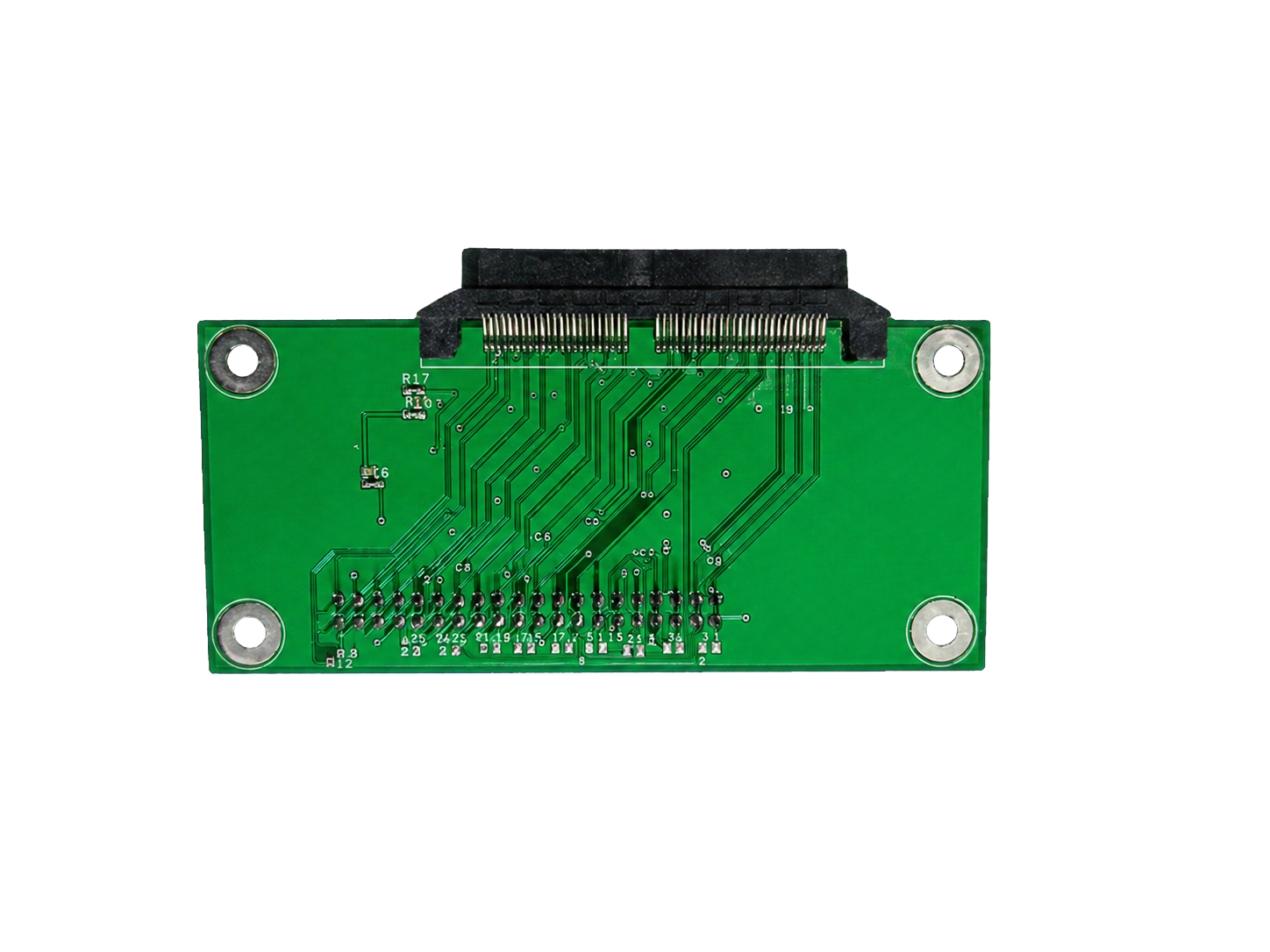

GPIO to Parallel Edge

Product ID: prod-13 · PN: LTL-ADA-104

GPIO-to-parallel-edge adapter supporting DC1620, 50 Ω impedance-matched routing, and data transfer rates up to 4.2 Gbps.

Hardware revision: To verify
Form factor: PCB adapter
Product family: GPIO / parallel adapters

Ask a Technical Question

Product overview

Purpose and intended use

The GPIO to Parallel Edge adapter provides a dedicated interface between GPIO connections and a parallel-edge data path. It supports DC1620 integration, uses 50 Ω impedance-matched routing, and supports data transfer rates up to 4.2 Gbps for high-speed laboratory and FPGA applications.

Typical applications

DC1620 interfacing
FPGA interface expansion
High-speed parallel data transfer
Laboratory integration

Features

High-speed GPIO-to-parallel-edge connectivity

Core capabilities supplied for LTL-ADA-104.

GPIO to Parallel Edge

Provides a dedicated adapter path between GPIO connections and a parallel-edge interface.

DC1620 Support

Designed to support integration with the DC1620 platform.

50 Ω Impedance Matching

Uses 50 Ω impedance-matched signal routing for reliable high-speed connectivity.

4.2 Gbps Transfer

Supports data transfer rates up to 4.2 Gbps.

Key specifications

Structured technical data

Adapter interfaceGPIO to Parallel Edge

Supported platformDC1620

Nominal trace impedance50 Ω

Data transfer rateUp to 4.2 Gbps

Supply voltageTo verify

Number of channelsTo verify

Board dimensionsTo verify

Operating temperatureTo verify

MountingTo verify

Downloads

Technical documents

▣DatasheetComing soon

▣User guideComing soon

▣SchematicComing soon

▣PinoutComing soon

▣Mechanical drawingComing soon

▣Example codeComing soon

Revision history

Product lifecycle

To verify

Current product catalog entry

Release date and change summary require manual verification.

Engineering inquiry

Need this product adapted to your system?

Discuss your project ↗
