Power Inductorsprod-14 · LTL-IND-403

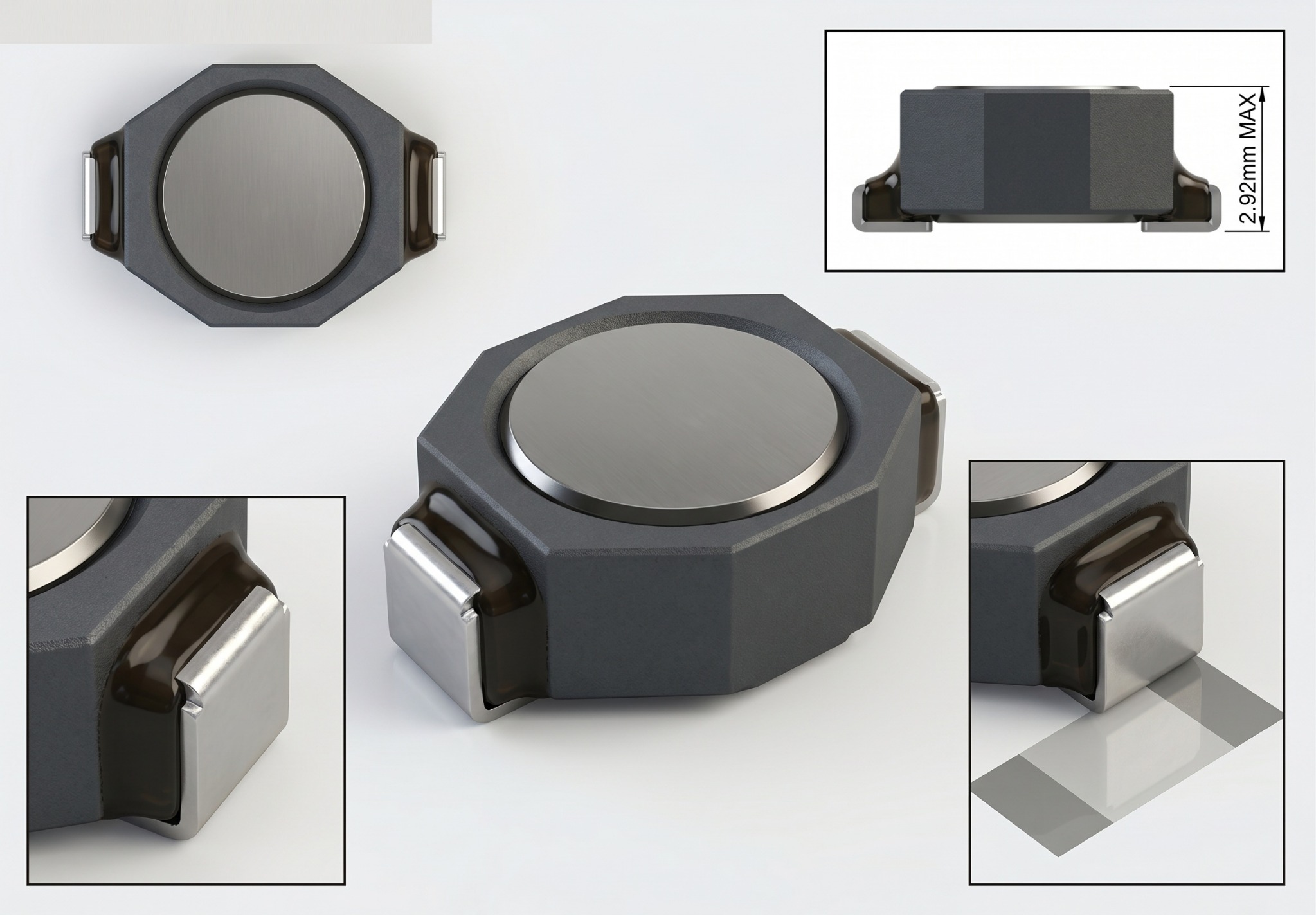

Shielded Low-DCR Power Inductors
Ultraminiature shielded SMD power inductors spanning 1.0 µH to 10,000 µH, with rated current options up to 3.0 A.
SMDShieldedLow DCRTape and Reel
Request Quote
Product catalog
Electronic components, boards, and adapters
Explore Logic Tech Labs power magnetics and specialized hardware for FPGA connectivity, high-speed data acquisition, interface conversion, and laboratory integration.
i
Published capabilities are based on the available product records. Fields marked “To verify” are confirmed during engineering review before quotation or integration.
5 products
Power Inductors
Adapterprod-10 · LTL-ADA-101

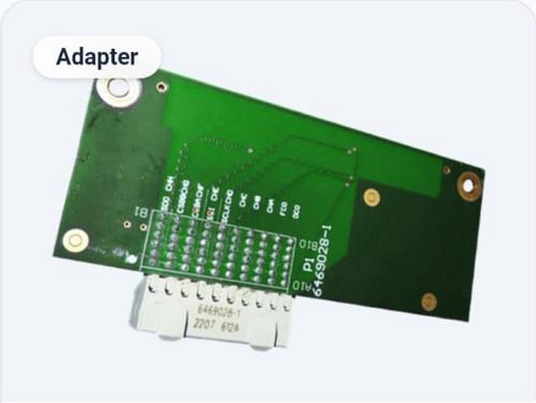

HSMC to Tyco Adapter
Connects HSMC-equipped FPGA development boards to the AD9222 evaluation board for high-speed LVDS data acquisition.
HSMCTycoLVDSAD9222
In Stock
Adapterprod-11 · LTL-ADA-102
HSMC to GPIO Adapter
Expands an FPGA board’s I/O capability by converting the HSMC interface into configurable general-purpose input/output connections.
HSMCGPIOFTDILVDS
In Stock
Adapterprod-12 · LTL-ADA-103

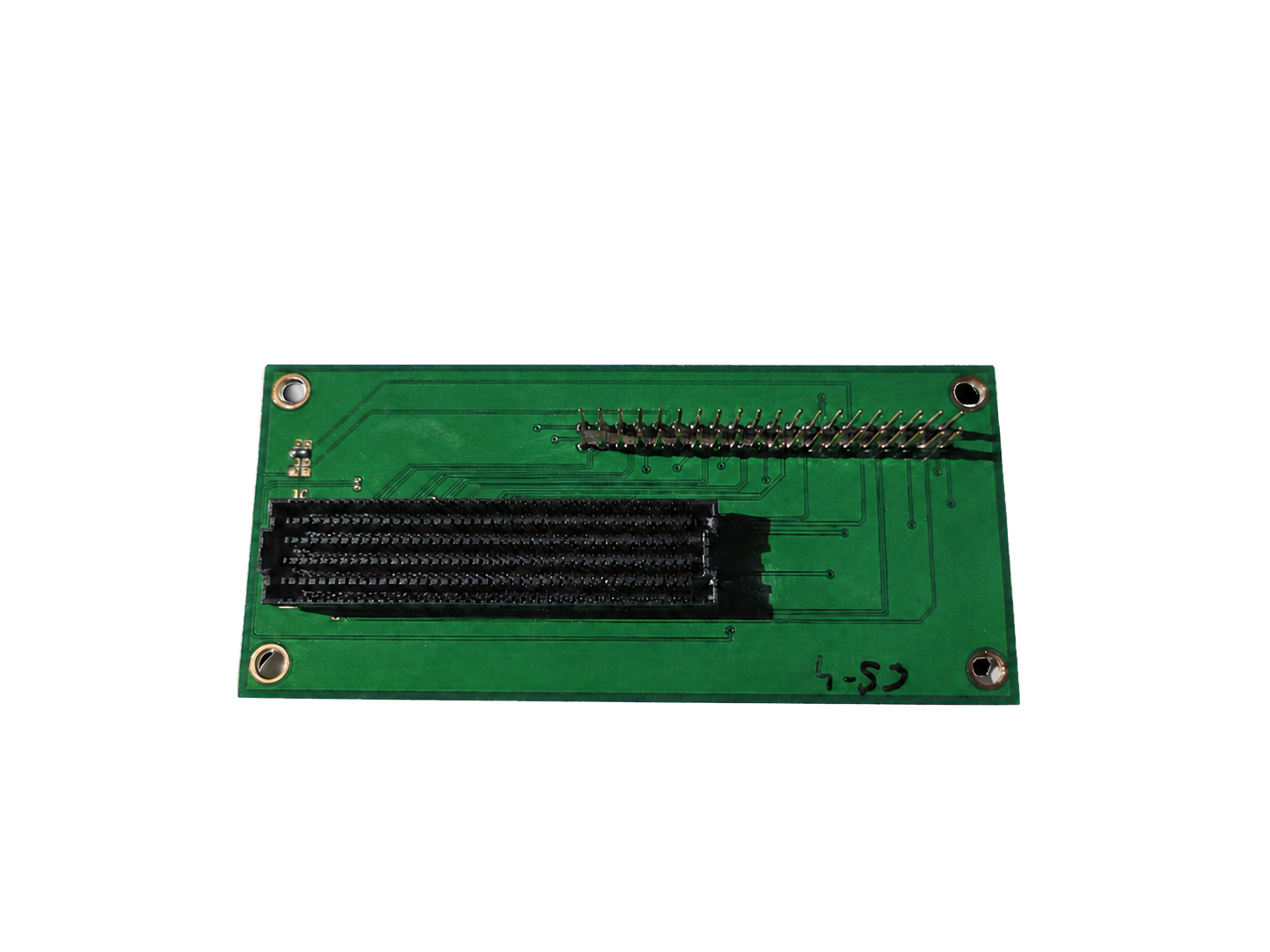

GPIO to FMC Adapter
Connects GPIO interfaces to FMC-compatible FPGA systems, with support for DE2-115 and DE10 development platforms and 50 Ω impedance-matched routing.
GPIOFMCDE2-115DE10
Request Quote
Adapterprod-13 · LTL-ADA-104

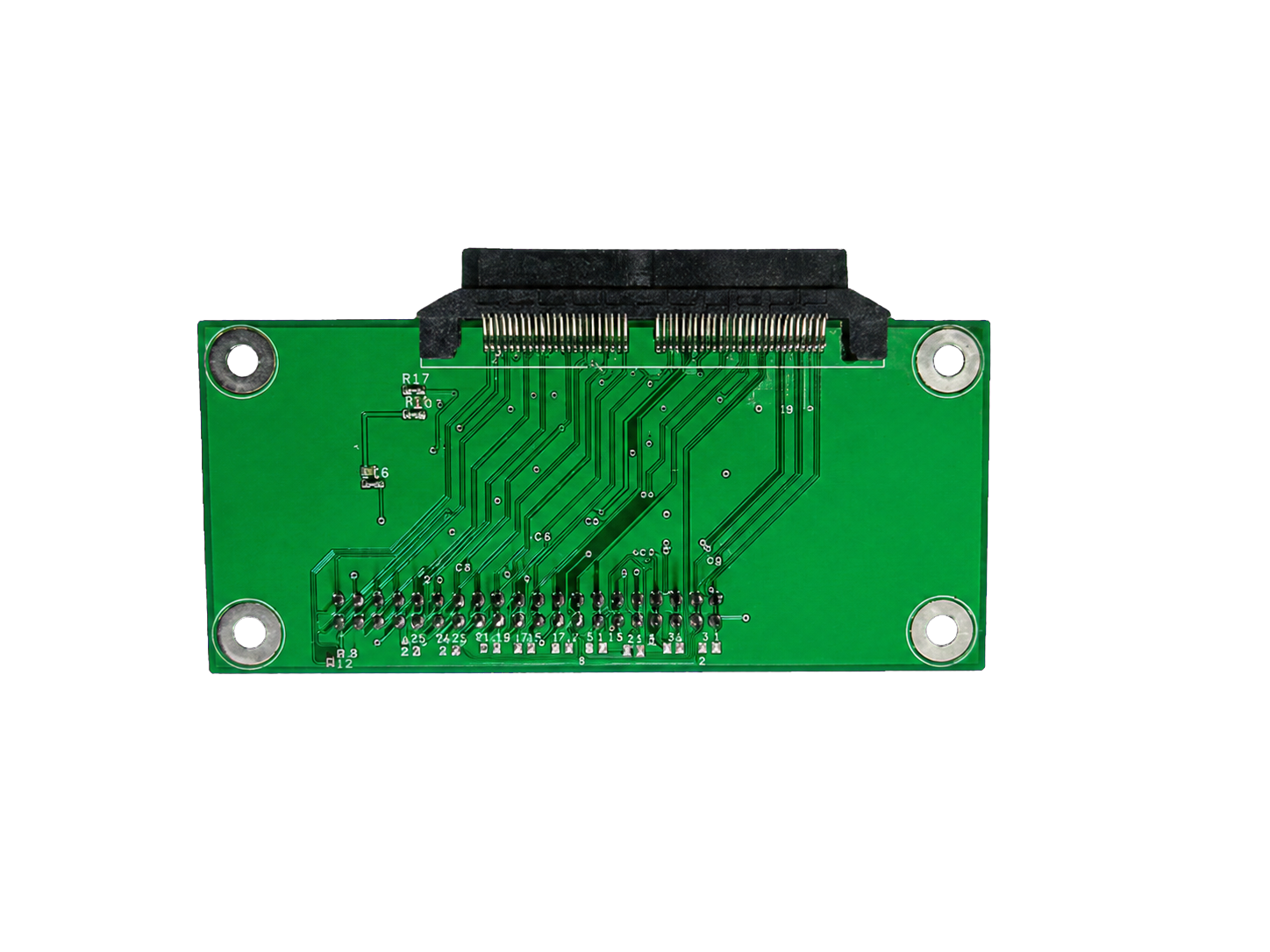

GPIO to Parallel Edge
GPIO-to-parallel-edge adapter supporting DC1620, 50 Ω impedance-matched routing, and data transfer rates up to 4.2 Gbps.
GPIOParallel EdgeDC1620
Request Quote
Product comparison
Compare products
Use this overview to narrow the options, then open a product page for the complete supplied specifications and verification notes.
| Product | Interfaces | Typical use | Key supplied specifications | Availability | Details |
|---|---|---|---|---|---|
| Shielded Low-DCR Power InductorsLTL-IND-403 | SMD · Shielded · Low DCR · Tape and Reel | DC/DC converter energy storage | Inductance range: 1.0 to 10,000 µHInductance tolerance: ±20% | Request Quote | Details ↗ |
| HSMC to Tyco AdapterLTL-ADA-101 | HSMC · Tyco · LVDS · AD9222 | AD9222 evaluation | FPGA-side interface: HSMC connectorADC-side interface: Tyco connector for the AD9222 evaluation board | In Stock | Details ↗ |
| HSMC to GPIO AdapterLTL-ADA-102 | HSMC · GPIO · FTDI · LVDS | FPGA I/O expansion | Supported interfaces: HSMC, GPIO, FTDI USB bridgeSignaling: Single-ended or LVDS | In Stock | Details ↗ |
| GPIO to FMC AdapterLTL-ADA-103 | GPIO · FMC · DE2-115 · DE10 | FPGA interface conversion | Adapter interface: GPIO to FMCSupported platforms: DE2-115 and DE10 | Request Quote | Details ↗ |
| GPIO to Parallel EdgeLTL-ADA-104 | GPIO · Parallel Edge · DC1620 | DC1620 interfacing | Adapter interface: GPIO to Parallel EdgeSupported platform: DC1620 | Request Quote | Details ↗ |
